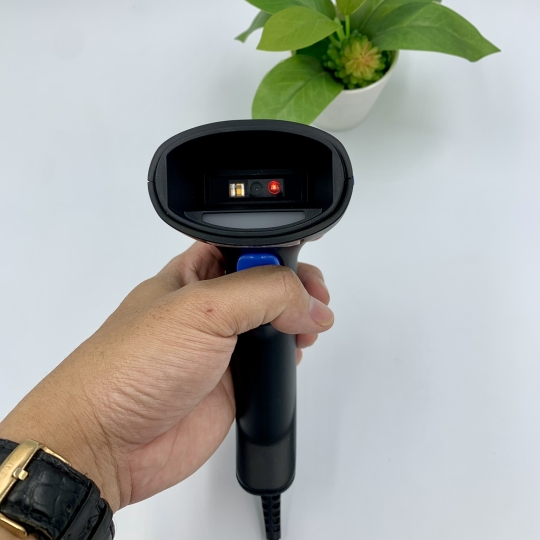

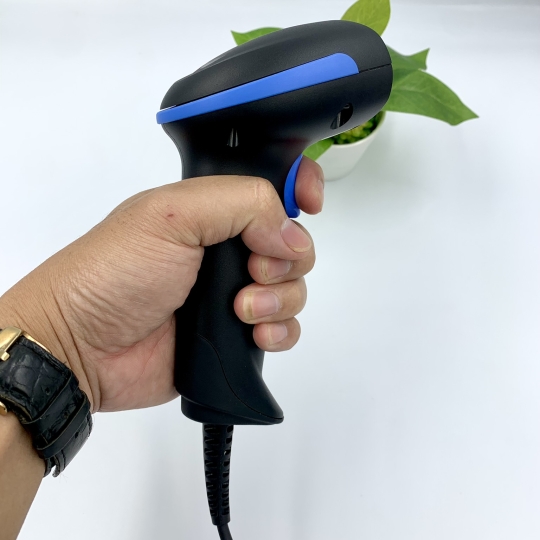

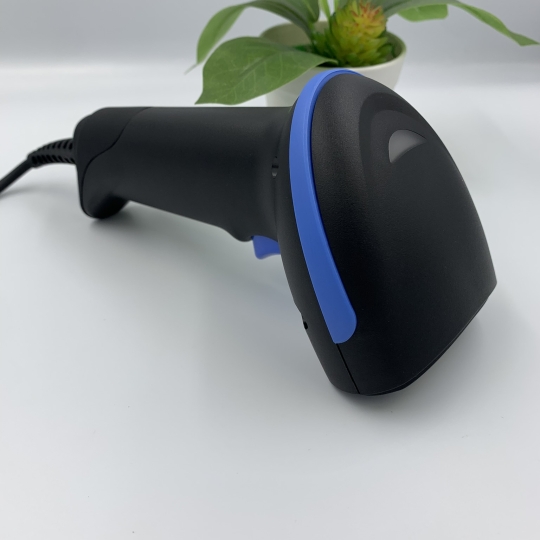

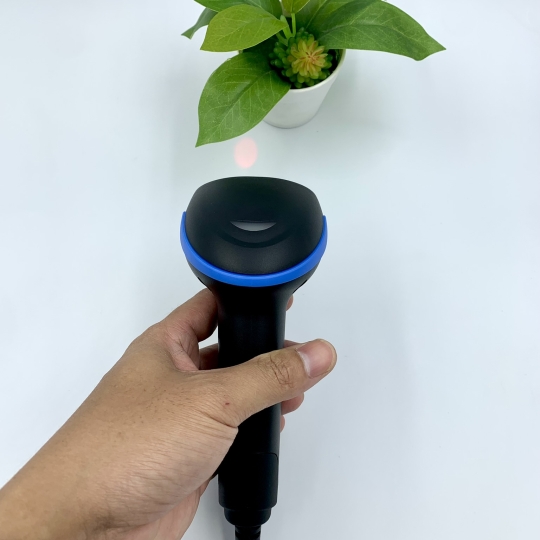

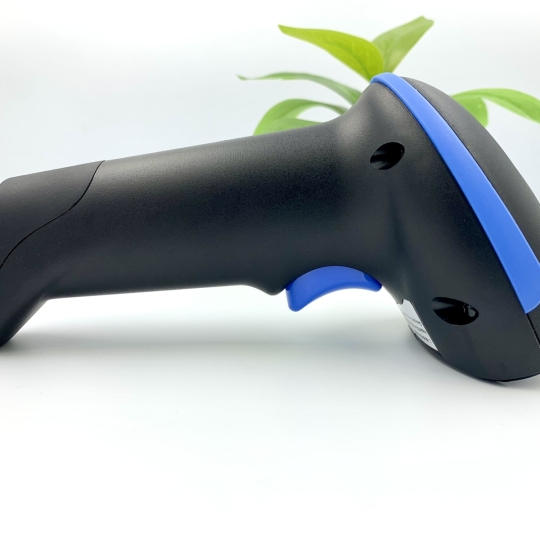

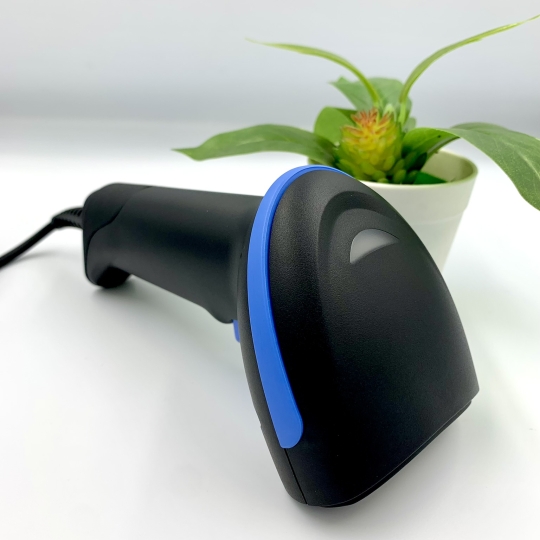

Máy quét mã vạch 2D có dây Mobydata V100 (KS1000 VGA)

Máy quét mã vạch 2D có dây Mobydata V100 (KS1000 VGA)

Máy quét mã vạch 2D có dây Mobydata V100 (KS1000 VGA)

Quét tốt căn cước công dân
  • 0
  • Liên hệ
  • 297
  • Thông tin sản phẩm
  • Bình luận

Thông số kỹ thuật

Khả năng giải mã
1D Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
2D Aztec Code; Aztec Mesas; Data Matrix; MaxiCode; QR Code, Micro QR Code; China Han Xin Code
POSTAL CODES Australian Post; British Post; Canadian Post; China Post; Japanese Post; IMB; KIX Post; Planet Code; Postnet;Royal Mail Code (RM4SCC)
STACKED CODES EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1
DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Hiệu suất quét
Cảm biến quét Field of View: 48°x37° (H x V) Wide VGA: 640 x 480 pixels
Nguồn sáng Aiming: 1 Blue LED; Illumination: White LED 350 - 770 nm
QUÉT BĂNG CHUYỂN 20 IPS
Độ tương phản tối thiểu 20% độ tương phản mã vạch
Góc quét Pitch: +/- 65°; Roll (Tilt): +/- 360°; Skew (Yaw): +/- 65°
CHỈ SỐ ĐỌC Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED
ĐỘ PHÂN GIẢI (MAXIMUM) Code 39: 4 mils: 0.102 mm PDF417: 6.6 mils: 0.168 mm QR/Data Matrix: 7.5 mils: 0.191 mm
Điện áp
Dòng Vận hành (Typical): 170 mA @ 5 VDC;Standby/Idle (Typical): 90 mA @ 5 VDC
Điện áp đầu vào 5 VDC +/- 10%
READING RANGES
TYPICAL DEPTH OF FIELD Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient
light dependent. Code 39: 5 mils: 0.5 to 12.5 cm / 0.2 to 4.9 in. EAN/UPCA: 13 mils: 0.5 to 30.0 cm / 0.2 to 11.8
in. PDF417: 6.6 mils: 1.0 to 9.5 cm / 0.4 to 3.7 in. Data Matrix: 10 mils: 1.0 to 9.5 cm / 0.4 to 3.7 in. QR: 20 mils:
1.0 to 14 cm / 0.4 to 5.5 in
Môi trường
AMBIENT LIGHT Up to 92,000 lux
CHỊU RƠI Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
ESD PROTECTION (AIR DISCHARGE) 16 kV
ĐỘ ẨM (KHÔNG NGƯNG TỤ) 0 - 95%
Chống nước chống bụi IP42
Nhiệt độ Vận hành: 0 to 50 °C / 32 to 122 °F. Storage/Transport: -20 to 70 °C / -4 to 158 °F
INTERFACES
INTERFACES KS1600R - RS-232/Keyboard Wedge; KS1600U -USB
PHYSICAL CHARACTERISTICS
Kích thước 7.1 x 17.1 x 6.6 cm / 2.8 x 6.7 x 2.6 in
Nặng 120.0g
SAFETY & REGULATORY
AGENCY APPROVALS The product meets necessary safety and regulatory approvals for its intended use.
Chứng chỉ môi trường Complies to China RoHS; Complies to EU RoHS
WARRANTY
WARRANTY 1-Year Factory Warranty
